Description
special tool for the stripping and skinning of all common cables in the solar sector I large, powerful stripping range from 1.5 mm²–10 mm² I precise working thanks to adjustable length stop (5–25 mm) I integrated, easily accessible side cutter up to 3 mm Ø Cu/Al I ergonomically designed, non-slip multi-component handle

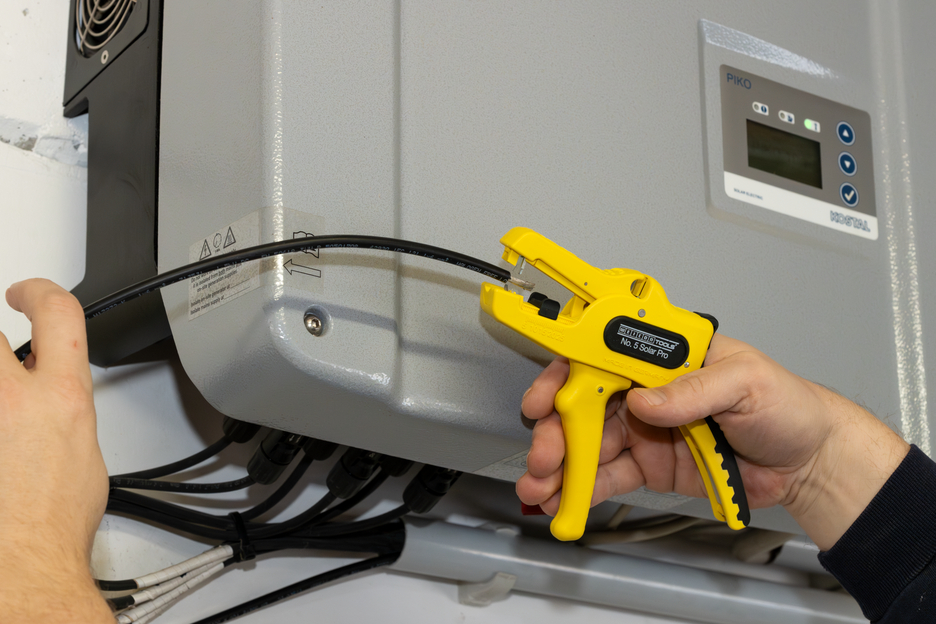

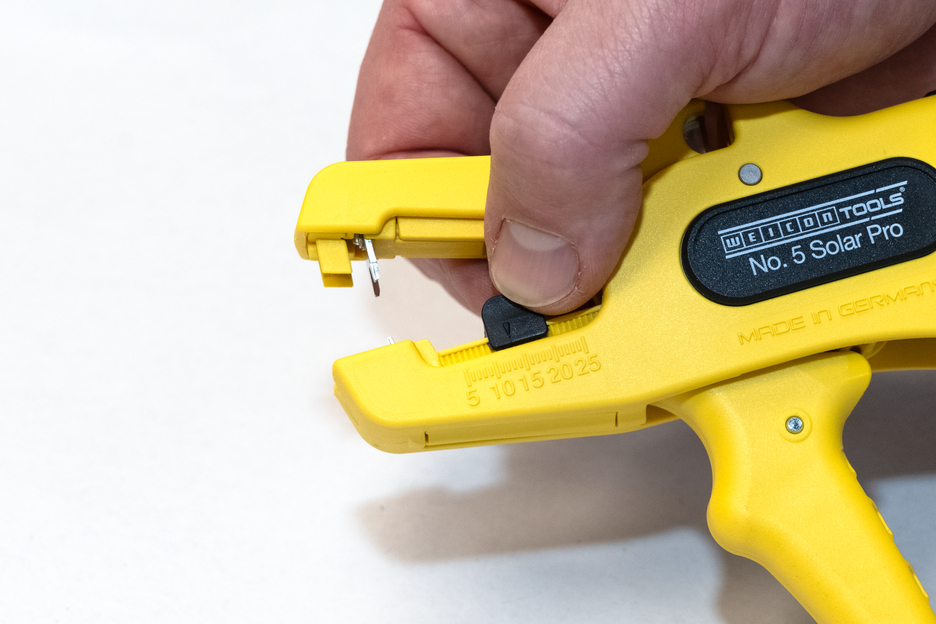

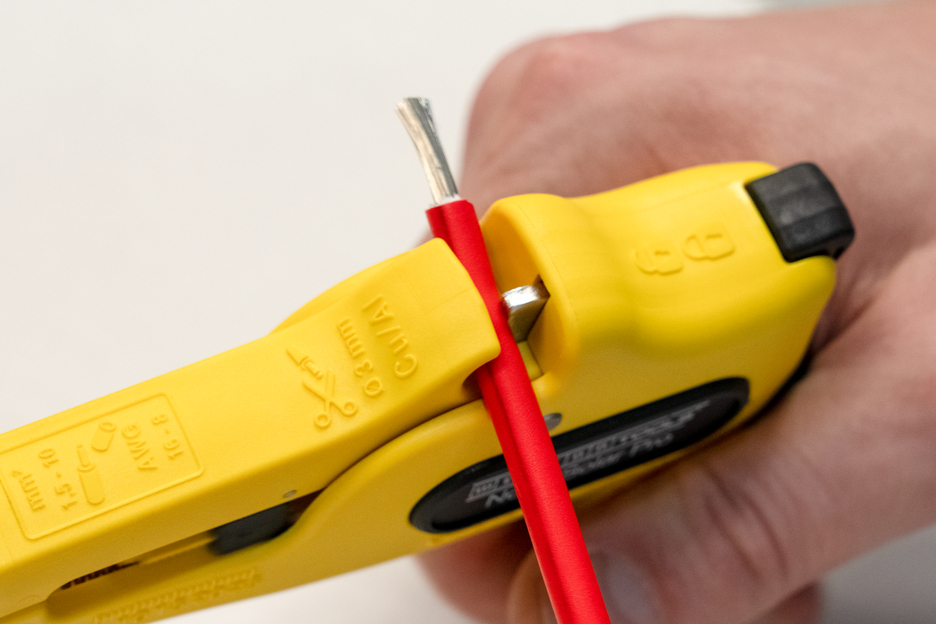

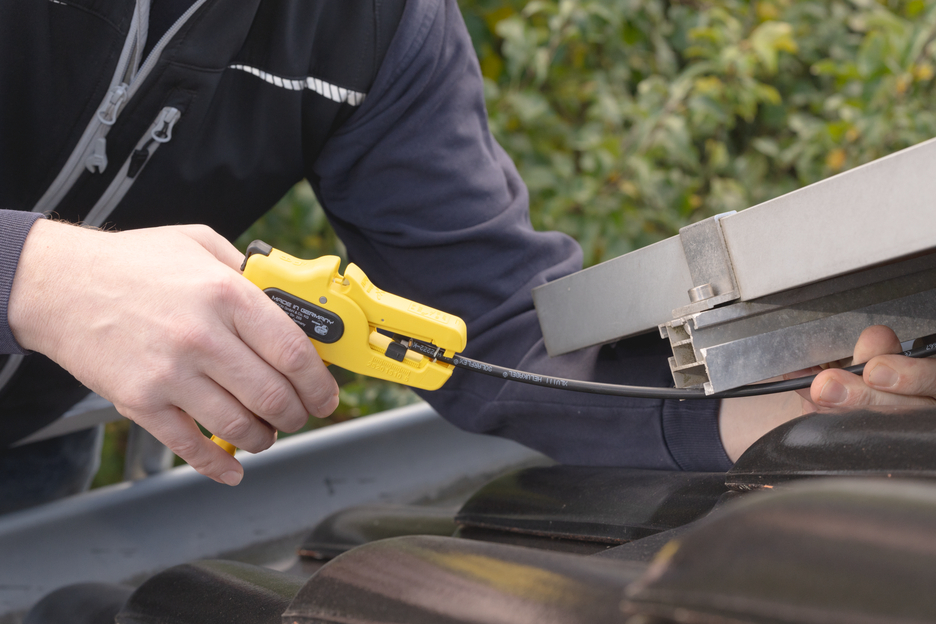

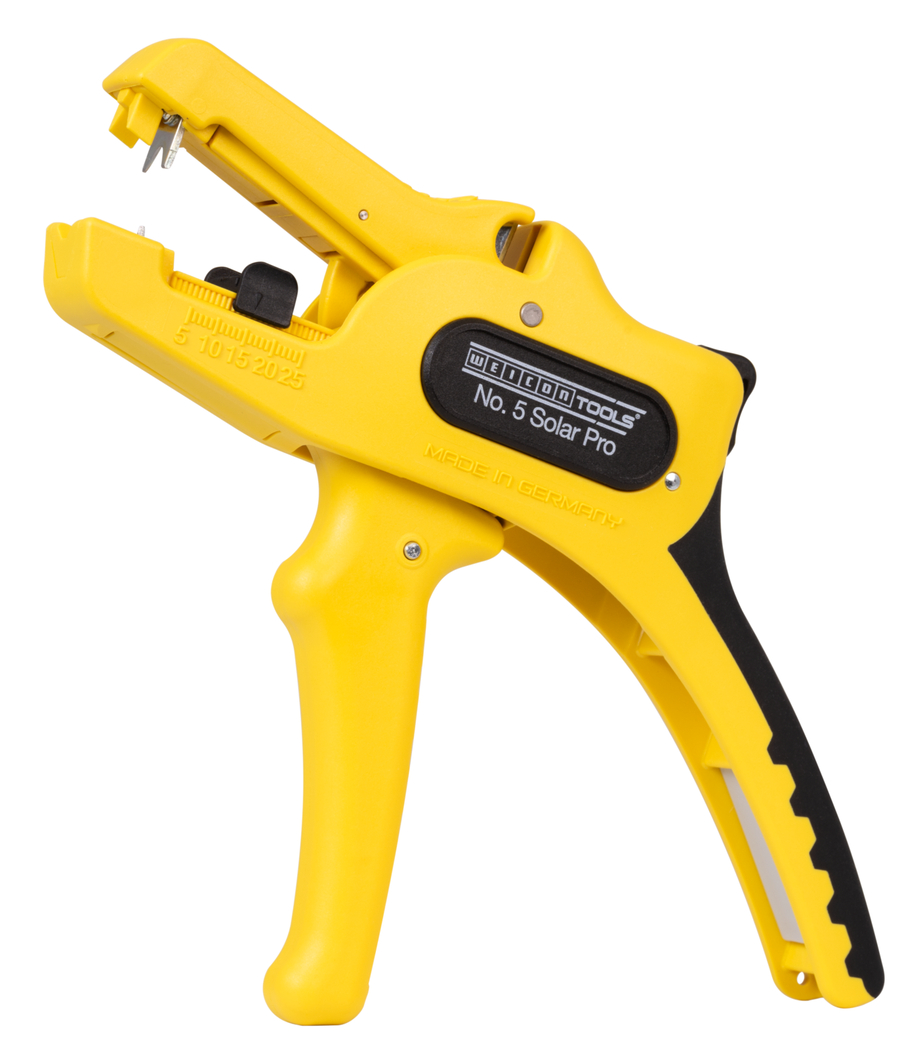

The automatic wire stripper is used to strip all common solar cables, such as H1Z2Z2-K from 1.5 to 10 mm². The adjustable length stop ranging from 5 to 25 mm ensures excellent precision and accuracy. The blades of the Wire Stripper No. 5 Solar Pro have been additionally hardened. Therefore, they can easily remove multi-layer rubberised insulation. If required, the length stop can be removed. The wire stripper automatically adjusts to the required conductor cross-section, so no manual adjustment is necessary. The tool features an integrated side cutter, which is suitable for conductors made of copper and aluminium up to a diameter of three millimetres. Thanks to its slim design, the wire stripper can also be used in areas that are difficult to access, such as on solar modules or on the inverter. The mechanics of the tool are very smooth-running and have proven to be durable and reliable in numerous tests. The wire stripper has a non-slip multi-component handle in a yellow and black “ice crack” design. It has an eyelet to attach a strap for fall protection, and it has a labelling area where the tool can be personalised. In addition, the wire stripper has a locking mechanism for space-saving storage. As with all strippers in the No. 5 product line, the galvanised blades can be replaced.
Downloads
Information
- Tool
Login
3 October 2024 14:51
Die Abisolierzange No. 5 Solar Pro als Gamechanger
Eine riesen Erleichterung im Photovoltaikbau, welches das Entmanteln und Abisolieren gängiger Photovoltaik-Kabel mit einem Querschnitt von 1,5 - 10 mm² zu einem Kinderspiel macht. Der integrierte Seitenschneider und der verstellbare Längenanschlag runden die Zange super ab und der ganze Arbeitsschritt erfolgt mit der Solar Pro. Was habe ich mich die letzten Jahre gequält mit dem abmanteln von Solarkabeln und jetzt geht es Dank der No. 5 Solar Pro so einfach.
Unsere Empfehlungen
($105.82* / 1 PCE)
($69.84* / 1 PCE)
($69.84* / 1 PCE)
($69.84* / 1 PCE)
Zubehör
($30.67* / 1 PCE)
Product safety
Attention:
Tool not to be used on live cables or conductors.
